Scratching Beneath the Surface: Cryo-EM Guides New Opioid Drug Design
Cryo-EM revealed the molecular basis of KOR signaling bias, enabling structure-based drug design of an anti-pruritic peptide with reduced side effects.

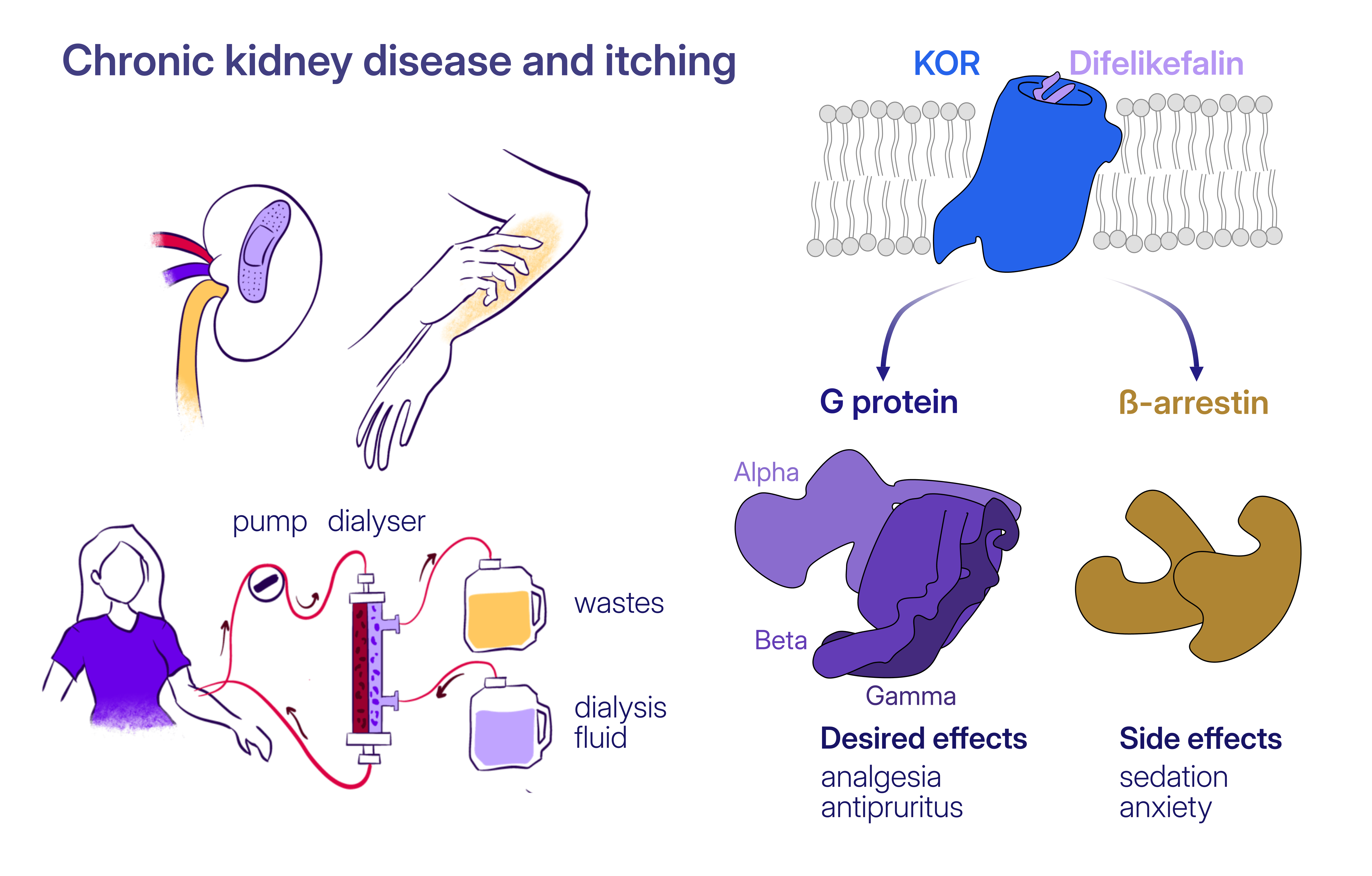

Patients with chronic kidney disease often rely on hemodialysis to perform the essential functions that failing kidneys no longer can. While this life-sustaining treatment removes excess fluids and waste products from the blood, it often comes with a difficult tradeoff. Many patients experience moderate-to-severe pruritus, a persistent, chronic itching sensation that can disrupt sleep, impair mental health, and significantly diminish quality of life.
For these patients, difelikefalin has offered much-needed relief. Approved by the FDA in 2021, this peptide therapeutic targets the κ-opioid receptor (KOR), a G protein-coupled receptor (GPCR) involved in regulating itch perception [1]. Yet, like many drugs acting on complex signaling systems, its benefits come with limitations. While difelikefalin effectively suppresses itch, it activates not only the therapeutically beneficial G-protein pathway but also β-arrestin signaling, which has been associated with side effects such as sedation and anxiety [2].
In other words, patients may find themselves exchanging one burden for another.
How can we preserve the therapeutic benefits of KOR activation while avoiding the pathways responsible for unwanted side effects? Answering this question requires understanding the molecular details of how difelikefalin interacts with its receptor, a challenge perfectly suited for structural biology and cryo-EM.
Cryo-EM Reveals the Molecular Basis of KOR Activation

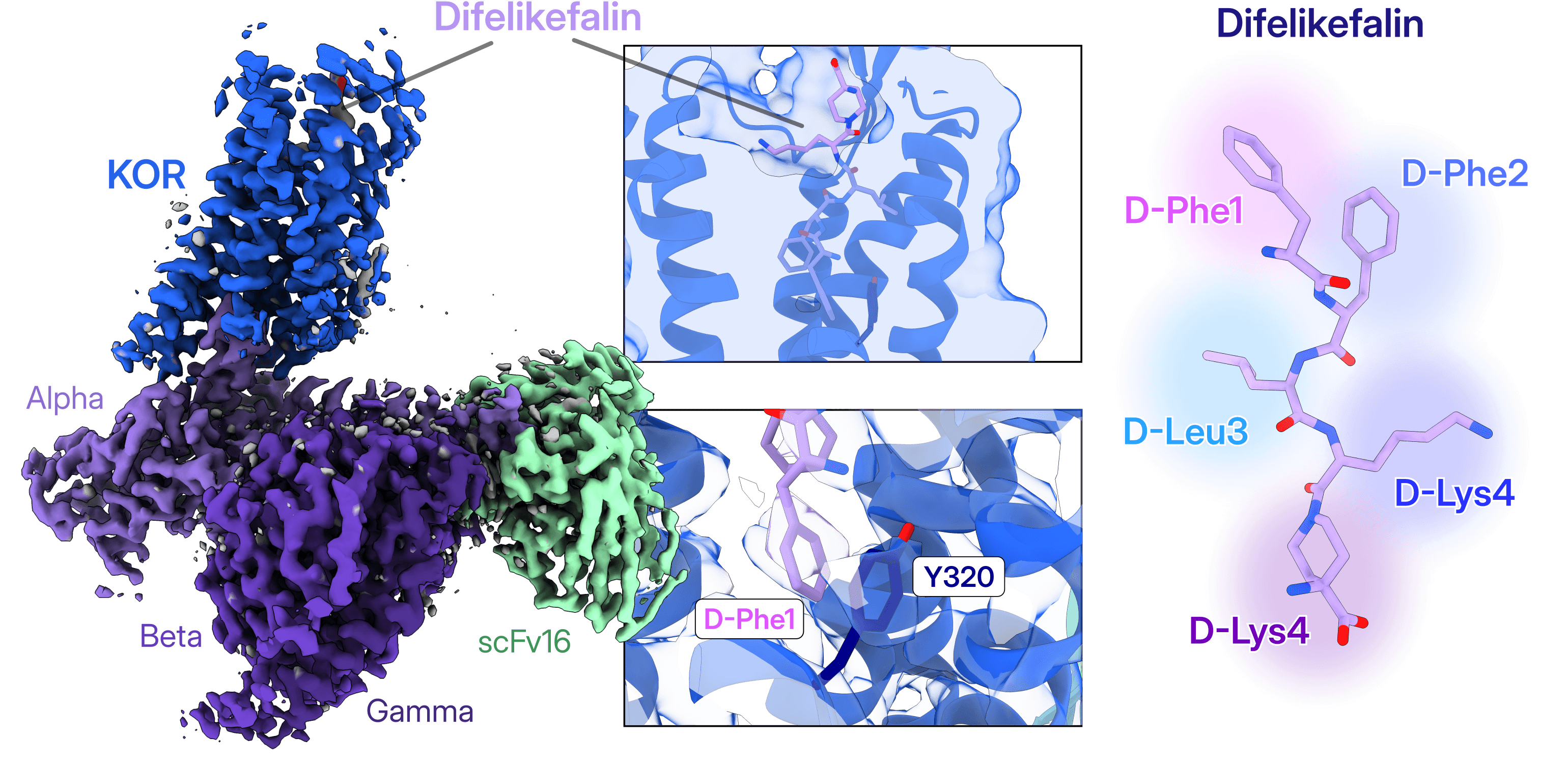

To obviate the need for safer opioid alternatives that retain therapeutic benefits while minimizing adverse effects, the authors of a recent study published in Nature Communications reconstituted the difelikefalin-bound KOR–Gi complex and employed single-particle cryo-EM to uncover its structural details. Using CryoSPARC for image processing and three-dimensional reconstruction, the researchers determined the architecture of the receptor in its active state, providing a view of how the therapeutic peptide engages KOR.
Their structural analysis identified a key residue, Y320, located within the receptor's binding pocket. This amino acid forms critical interactions with difelikefalin, engaging the N-terminal D-Phe1 residue of difelikefalin through a π–π interaction. A series of mutational studies confirmed that this residue is also essential for modulating the balance between KOR-mediated G-protein activation and β-arrestin recruitment. These findings transformed a structural observation into a mechanistic understanding of receptor function, revealing a potential strategy for designing safer KOR-targeting therapeutics.
From Structural Insight to Drug Design: Engineering Beta01
Armed with a detailed structural blueprint, the researchers set out to redesign difelikefalin itself. Remarkably, replacing this single D-Phe1 amino acid with β-phenylalanine produced a new peptide, beta01, with dramatically different signaling properties.
Despite the minimal chemical change, beta01 behaved as a strongly G protein-biased agonist. In cellular and animal studies, it retained the antipruritic efficacy of difelikefalin while substantially reducing side effects such as sedation and anxiety.

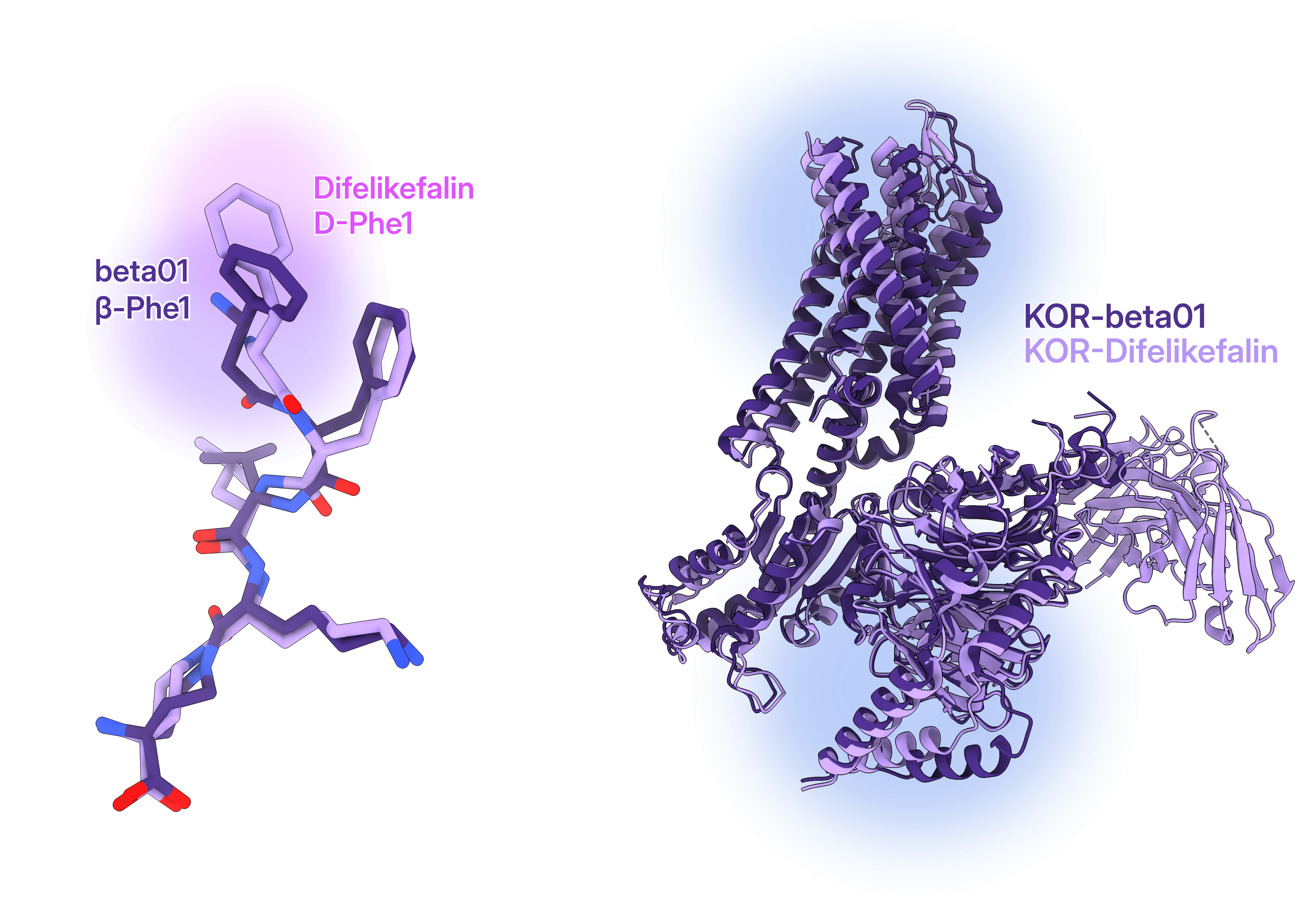

To understand why such a subtle modification had such a profound effect, the team again turned to cryo-EM. Using CryoSPARC to process the cryo-EM data, they determined the structure of the beta01-bound KOR–Gi complex and compared it with the original difelikefalin-bound receptor.
The comparison revealed that beta01 induces a distinct network of conformational changes throughout the receptor. Several key GPCR microswitches adopted different conformations relative to the difelikefalin-bound state. Together, these changes reshaped the intracellular face of KOR, creating a receptor conformation that remained competent for G-protein coupling but appeared less favorable for β-arrestin engagement.
The study did not stop at cryo-EM structures. Molecular dynamics simulations, NMR spectroscopy, and functional signaling assays provided complementary evidence that beta01 stabilizes a unique ensemble of receptor conformations.
A Roadmap for Next-Generation GPCR Therapeutics
The development of beta01 demonstrates the power of structure-guided drug design. Rather than relying solely on trial-and-error screening, the researchers used cryo-EM to identify the molecular interactions responsible for signaling bias, engineered a targeted modification, and validated its effects experimentally.
More broadly, this study illustrates how modern cryo-EM workflows can accelerate the journey from molecular understanding to therapeutic innovation. By revealing how small changes in ligand structure reshape receptor signaling, structural biology provides a rational framework for designing safer and more effective medicines.
References
- Li, X., Wan, H., Dong, P., Wang, B., Zhang, L., Hu, Q., ... & Tao, W. (2020).Discovery of SHR0687, a highly potent and peripheral nervous system-restricted KOR agonist. ACS Medicinal Chemistry Letters, 11(11), 2151-2155.
- Wala, K., & Szepietowski, J. C. (2022).Difelikefalin in the treatment of chronic kidney disease-associated pruritus: a systematic review. Pharmaceuticals, 15(8), 934.
